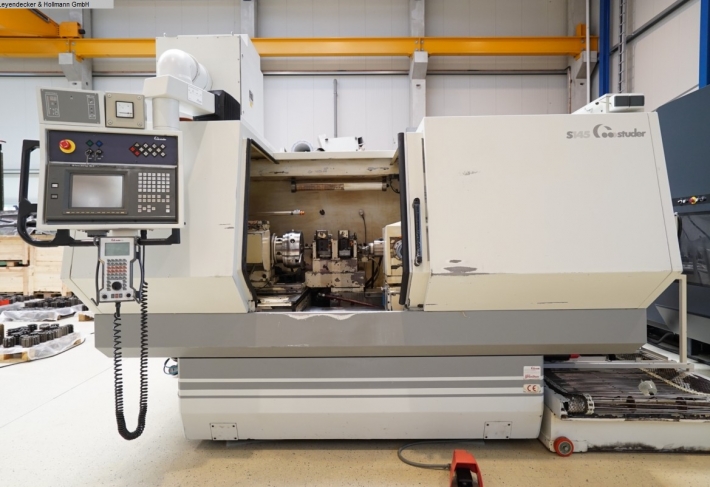

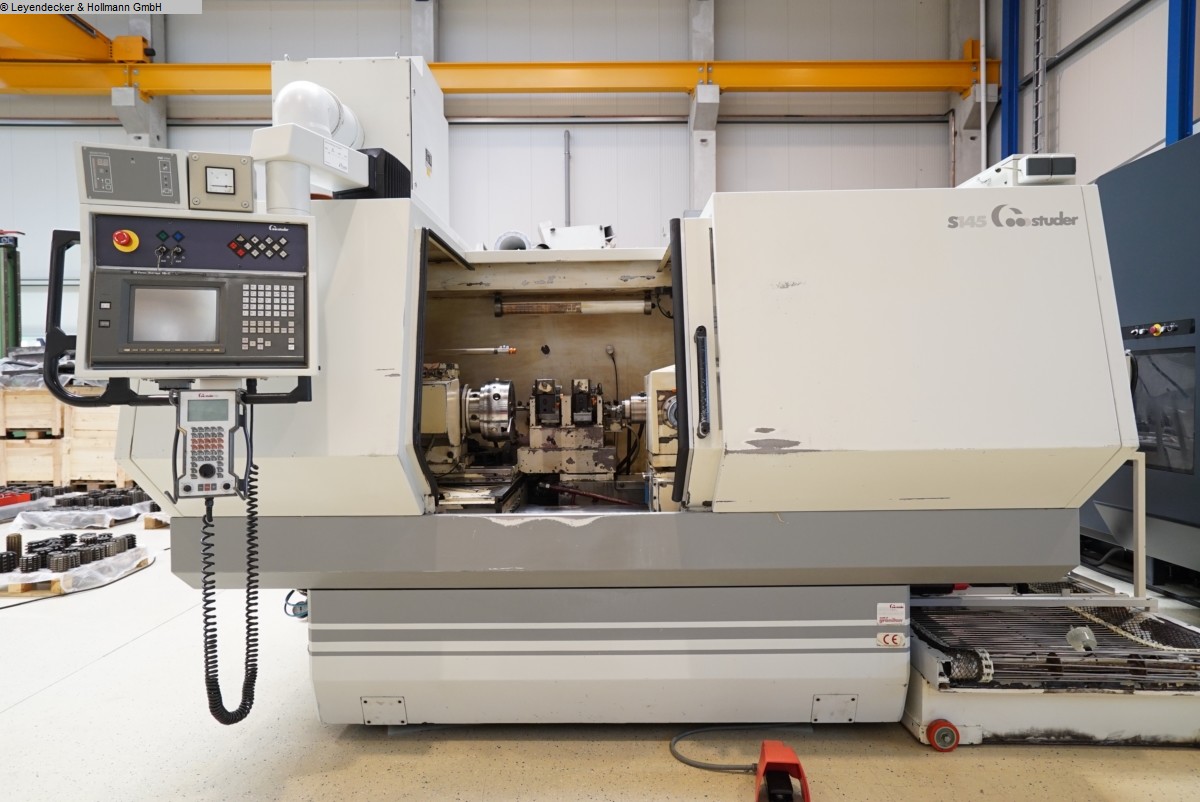

STUDER - Internal and Face Grinding Machine Stock-No. 02846
Offer details
Stock-No.
02846 Type of machine
Internal and Face Grinding Machine Make
STUDER Type
S 145 Year of manufacture
2001 Type of control
CNC Control name

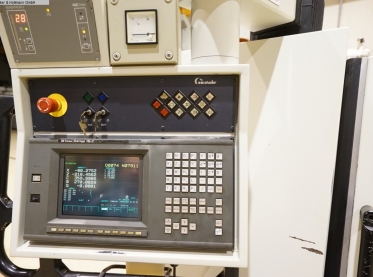

Fanuc 16 TB
Technical details
internal diameter
ca. 250 grinding depth
200 mm swing diameter

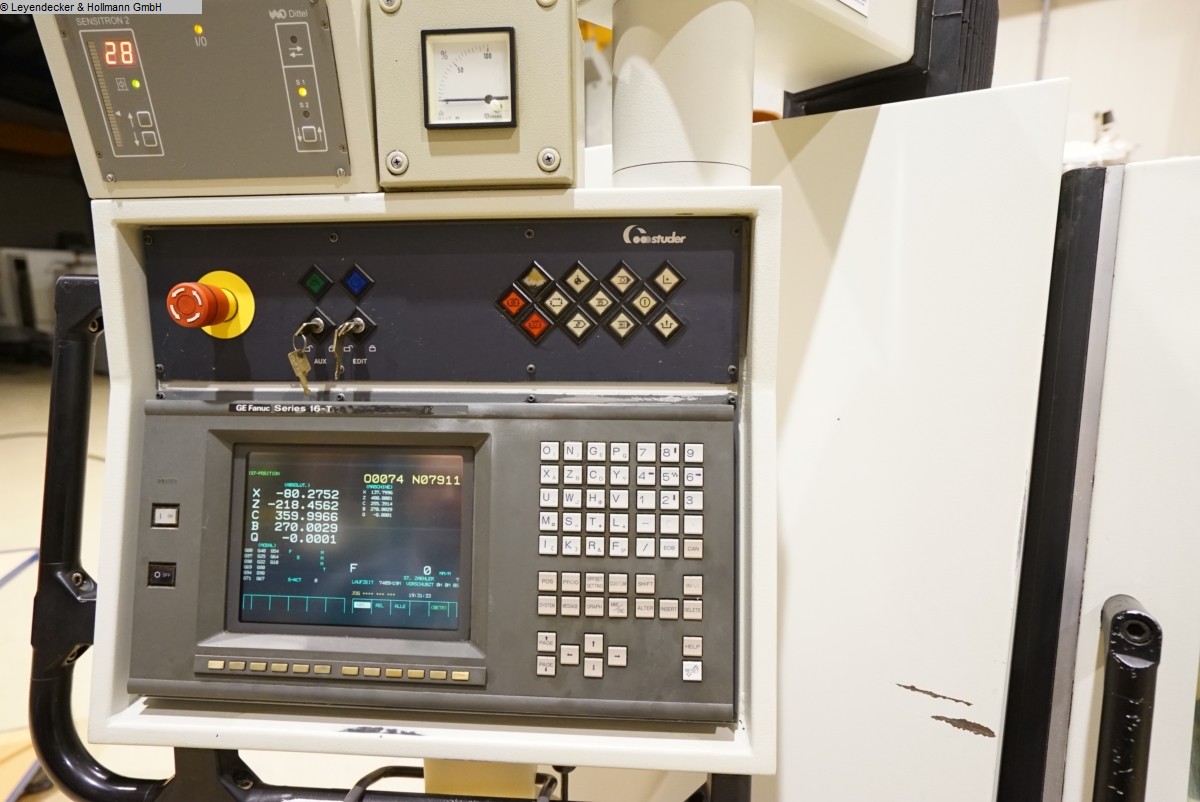

440 mm Control
Fanuc 16 TB max. workpiece weight between centres
150 kg spindle speeds
1 - 1.000 U/min. C-axis for work spindle: rotation speed
max. 650 rpm weight of the machine ca.
5.700 kg Installation area
5,2 x 4,0 m x 2,8 m mm
additional information

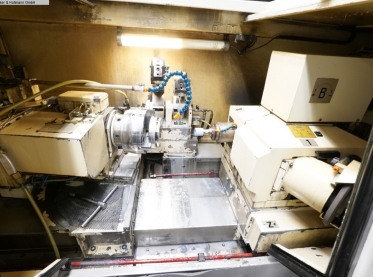

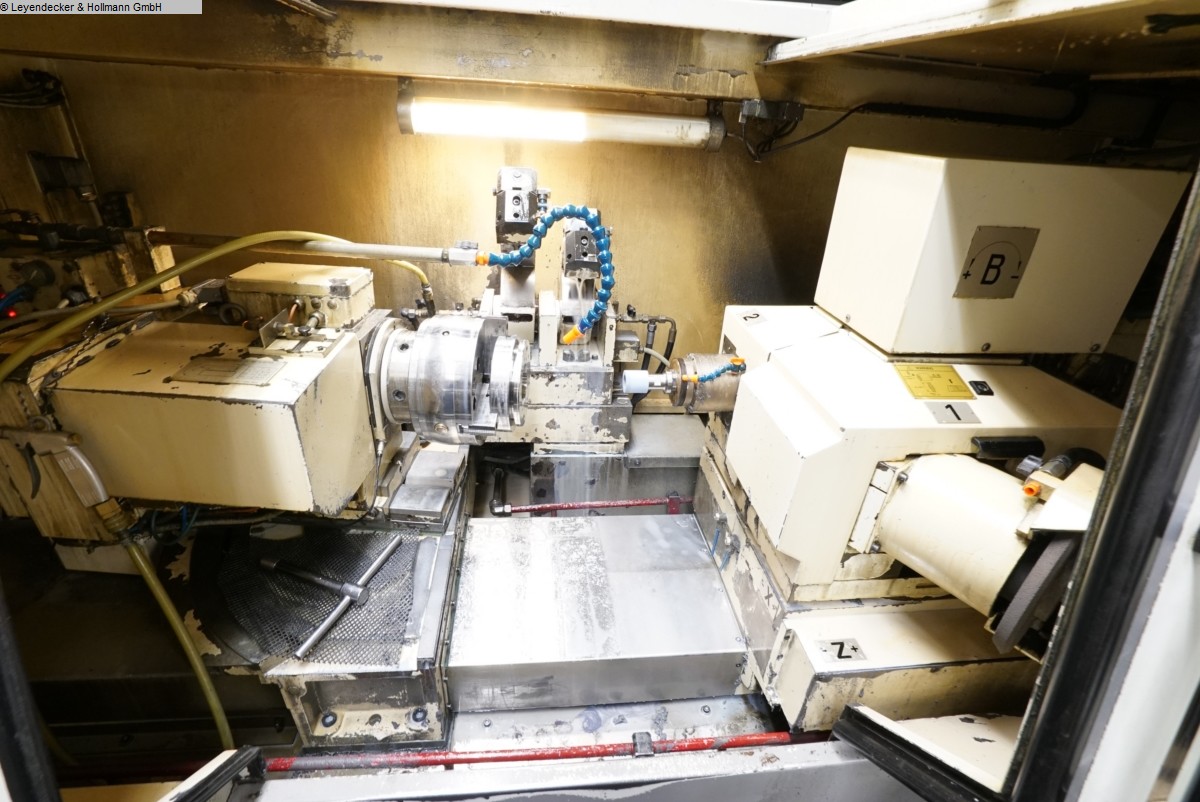

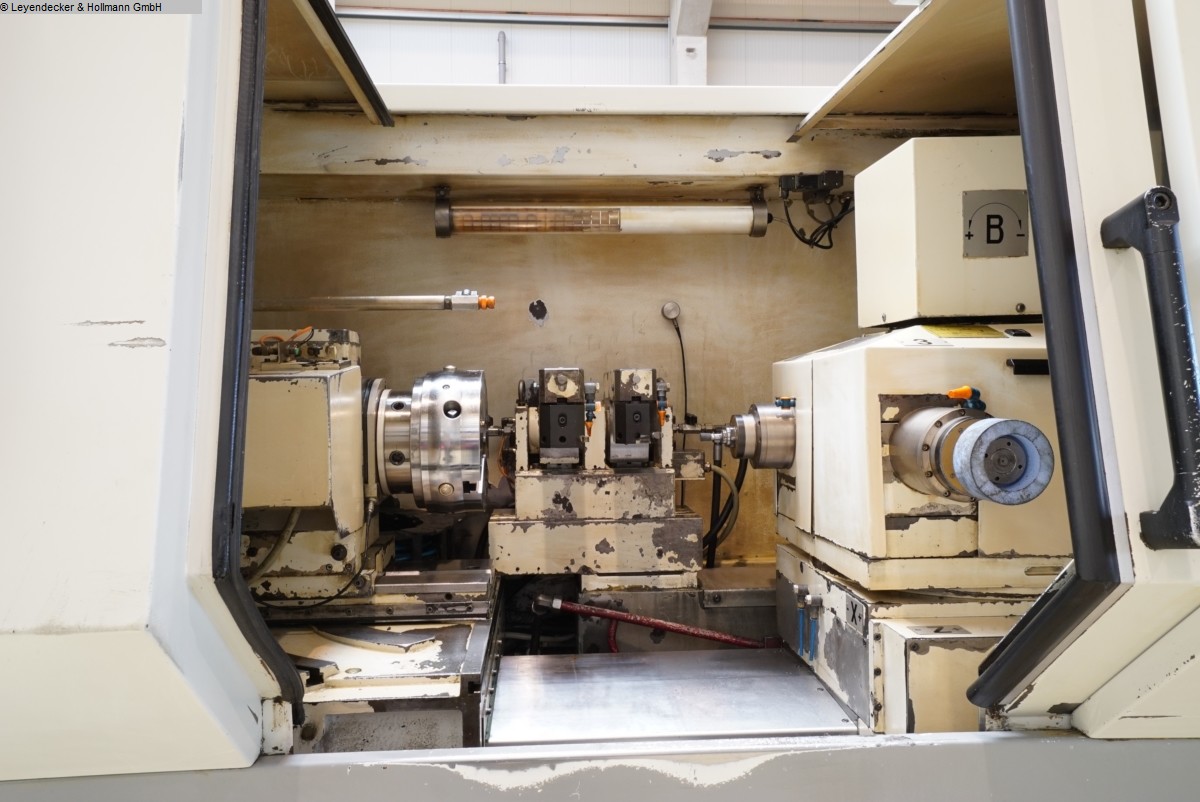

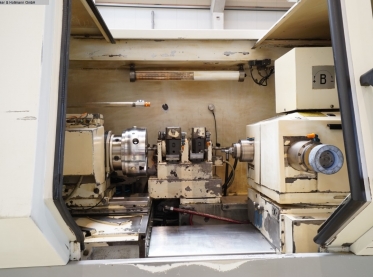

- Internal grinding machine with external and face grinding device
- good condition - inspection under power possibl
-
- Werkpiece headstock over paper band filter
- - workpiece weight between centres max. 150 kg
- - speed range 1-1000 rpm, at C-axis 650 rpm
-
- Workpiece table
- - including air lift-off and hydraulic clamping
- - swivel range +/- 30°
-

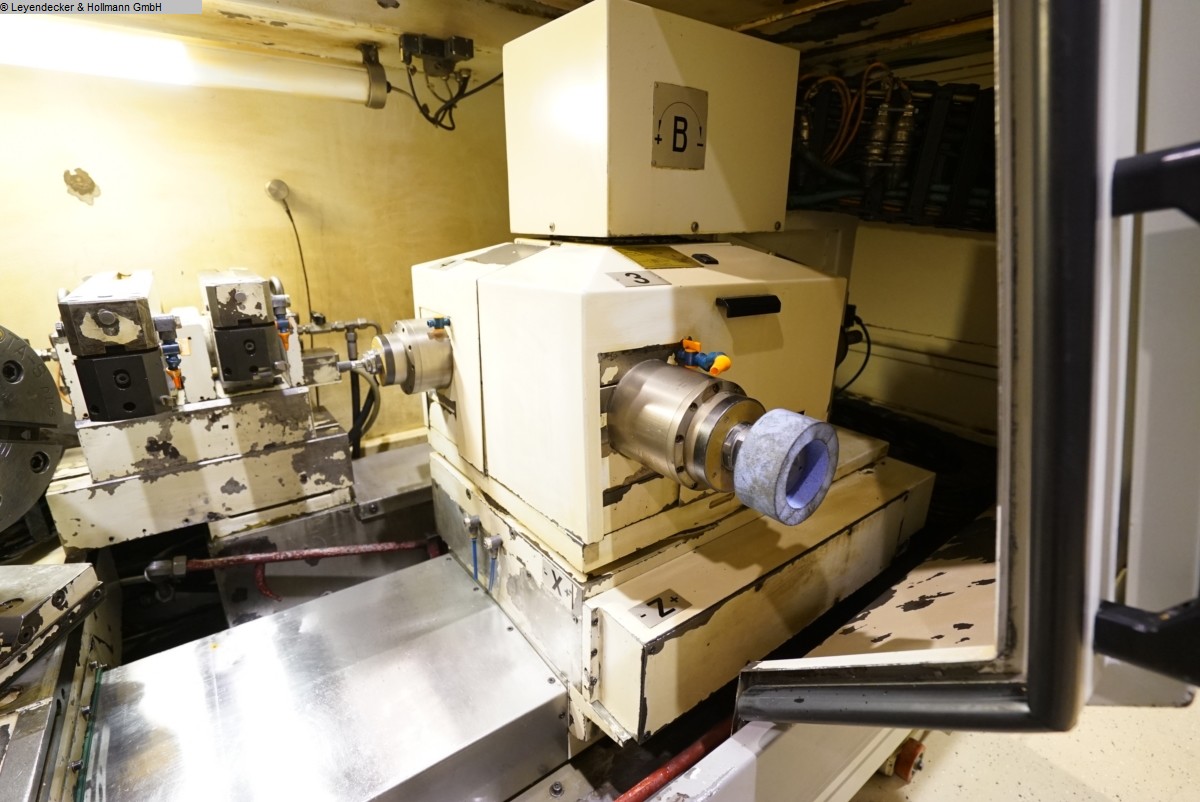

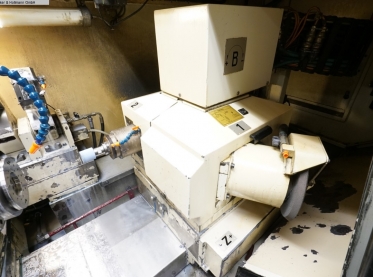

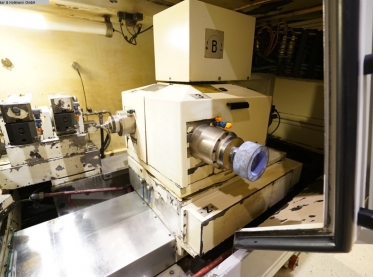

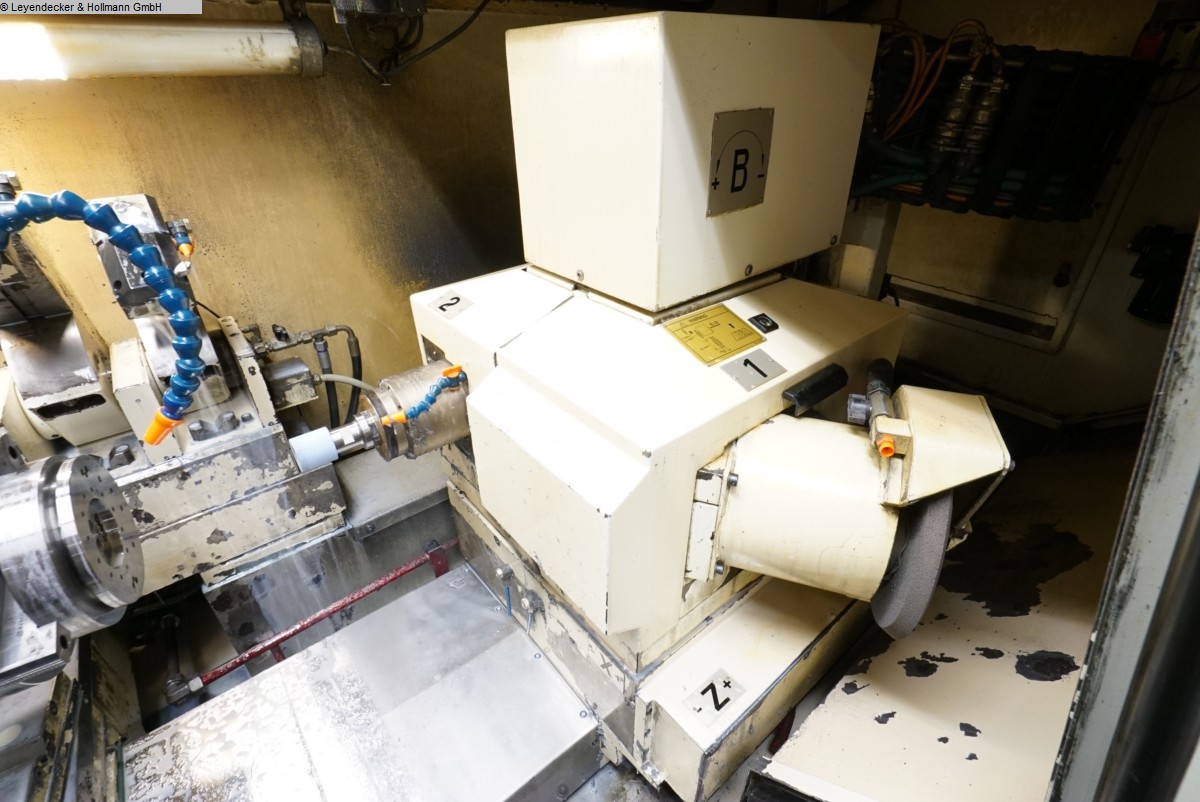

- Internal grinding table
- - with four tool positions
- - indexing every 90°
- - swivel movement CNC-controlled
-
- Cross slide Z/X:
- - cross axis X
- travel 120 mm
- feed speed 0.001 - 5000 mm/min
- - longitudinal axis Z
- travel 500 mm
- feed speed 0.001 - 10000 mm/min
-

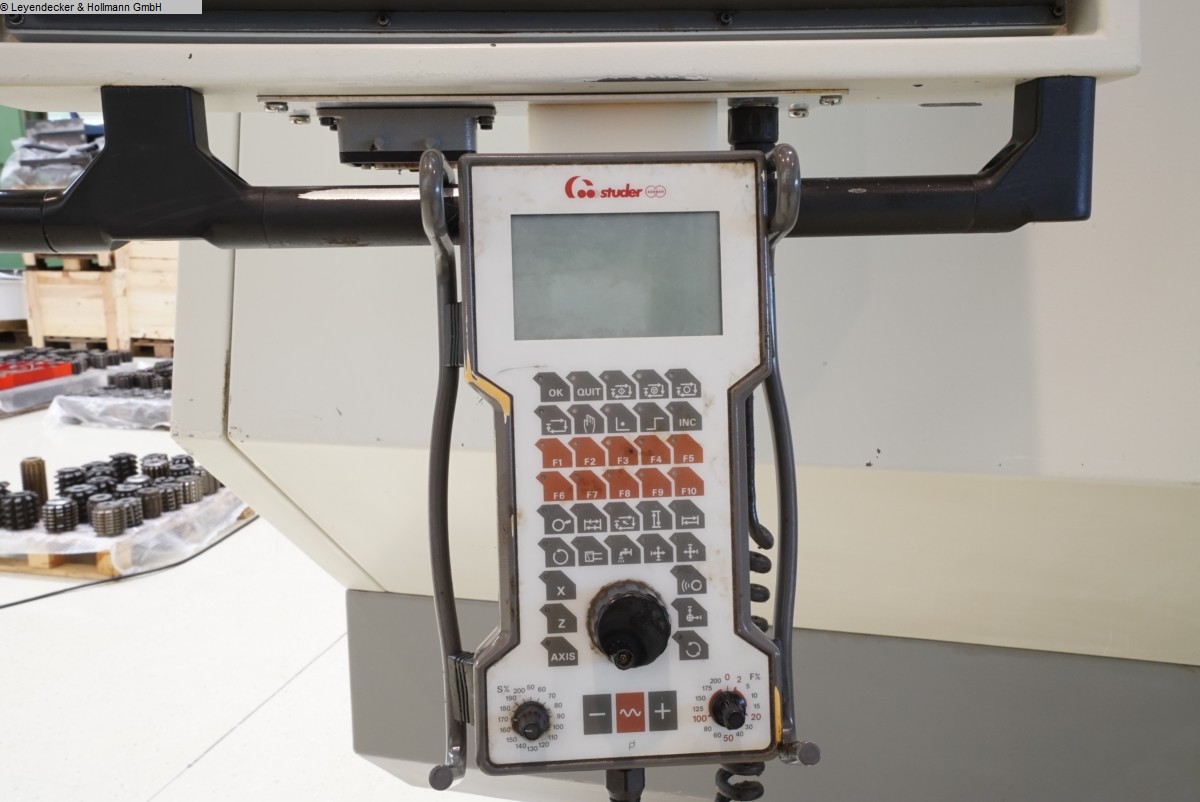

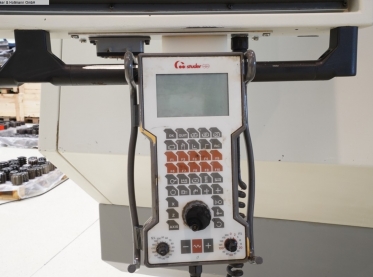

- Studer operating system release B
- - setup cycles operator-guided
- - machining cycles for diameter-, shoulder-, cone machining and
- free contours (X/Z)
- - automatic dressing including free disc shape
- - switch-on clock function
- - programmable robot cycle process
-
- Coolant device
- for grinding and dressing, including coolant valve for
- Internal grinding cycle
-
- frequency
- 30 kVA, for driving 1-4 high-speed internal grinding spindles
-

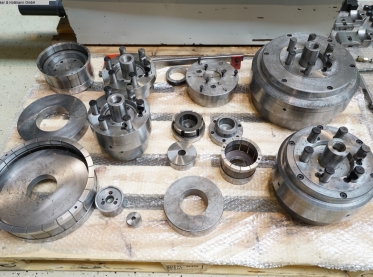

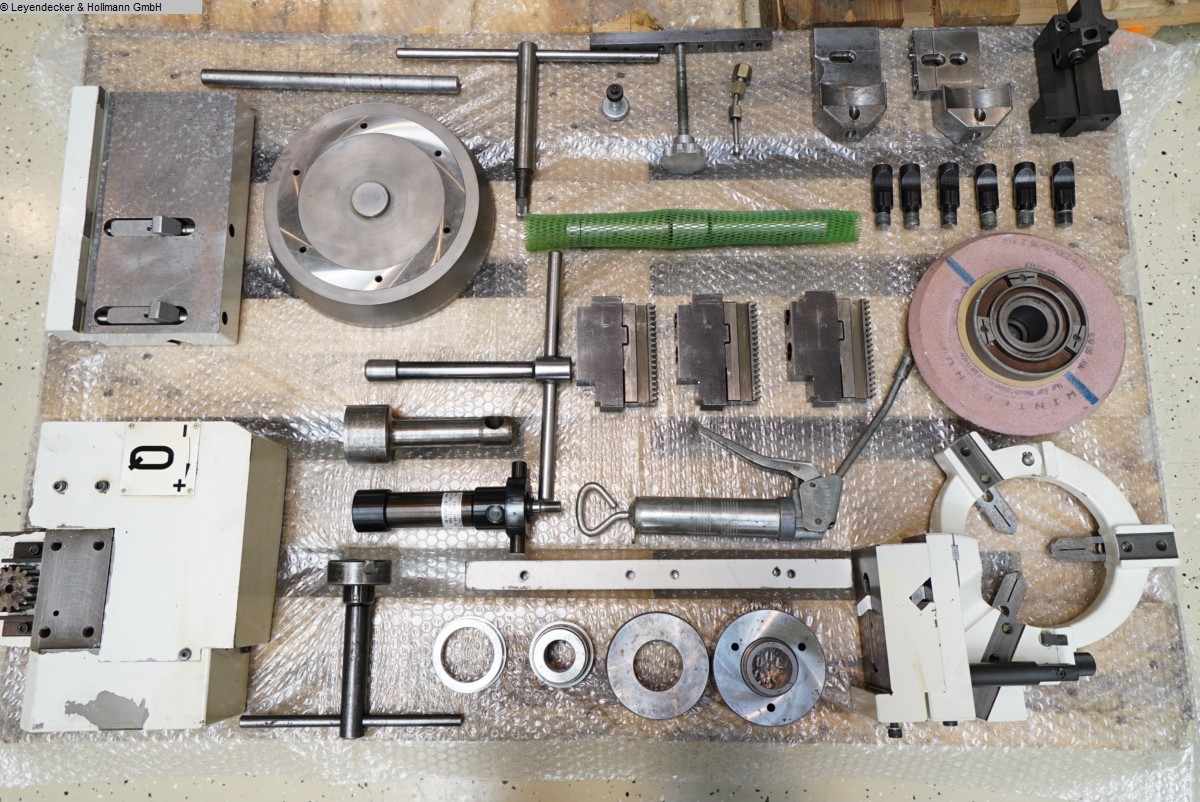

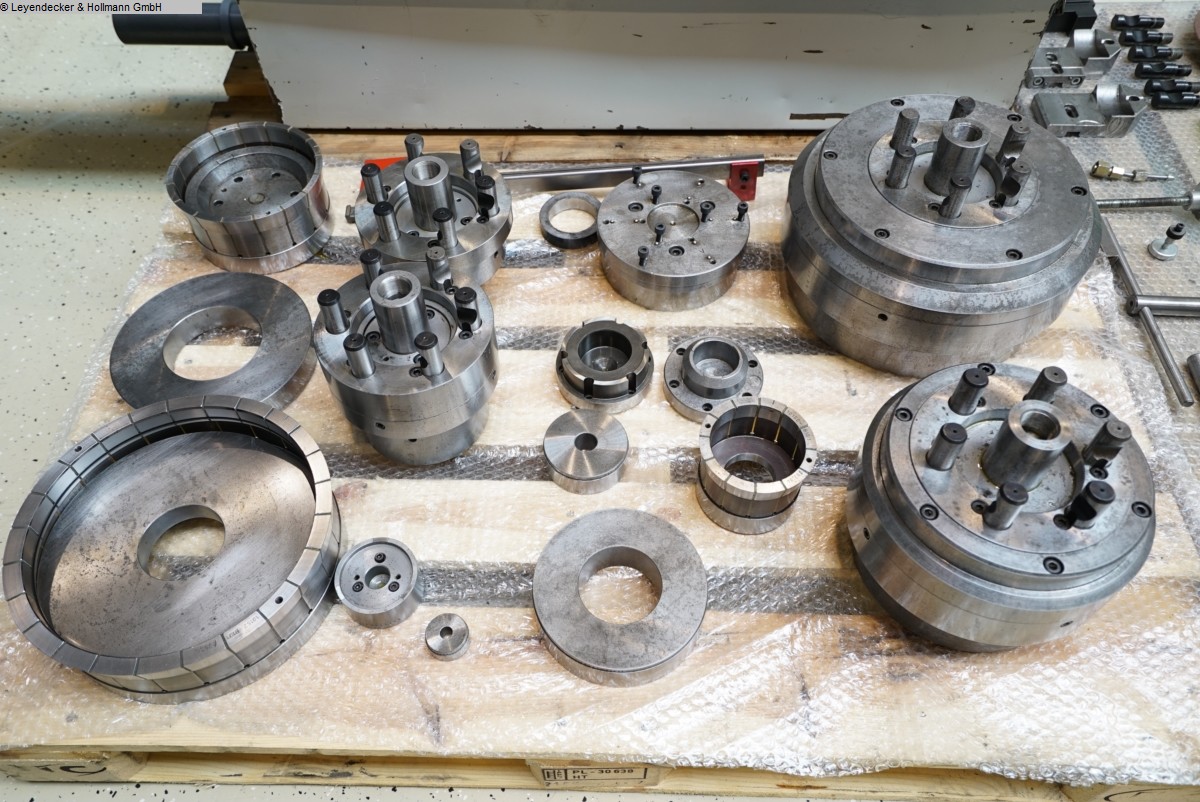

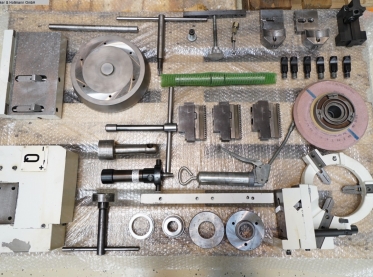

- Including various accessories
- - three-jaw chuck Rota S plus 250 - 62
- - 4 nos. collet chuck device including collet chucks
- - 1 external and 3 internal grinding spindles
- - 1 steady rest
- - Coolant with paper filter
- - Oil mist exhauster
- - documentation
-
